Automatic nozzle visual inspection machine TANI-01-C

The nozzle hole and the surface are automatically inspected based on the image of the nozzle after cleaning.
The machine will automatically judge if the condition is pass or fail by comparing to new nozzles.
The result can be exported as CVS data after reading the 2D code.

Inspection flow

The nozzle holder used in the cleaning machine can be set as it is.

Inspection flow

Pass/ fail judgment is made by comparing the master nozzle (new nozzle) image with the image of the nozzle after cleaning.

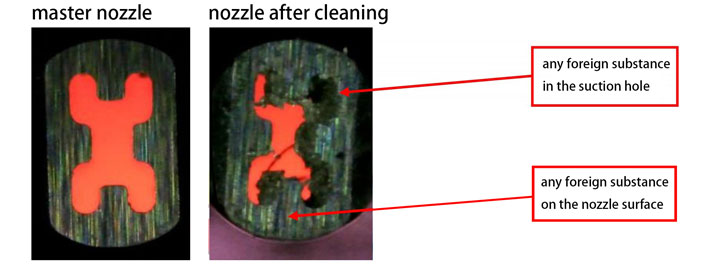

1. Judging if there is any foreign substance in the suction hole	Measure the dot area of the suction hole (red part), set the master image area to 100%, then measure the area of the image of the cleaned nozzle (ex. 90%) and judge if the condition is pass or fail.
2. Judging if there is any foreign substance on the nozzle surface	After setting the nozzle tip area (excluding the inside of the suction hole), the image is converted to color and the dots of foreign substance are measured. During the master image registration process, the customer will determine the pass and fail threshold (**%)

Export results as CSV data after each inspection (using FTP communication)

Basic format		TANI-01-C

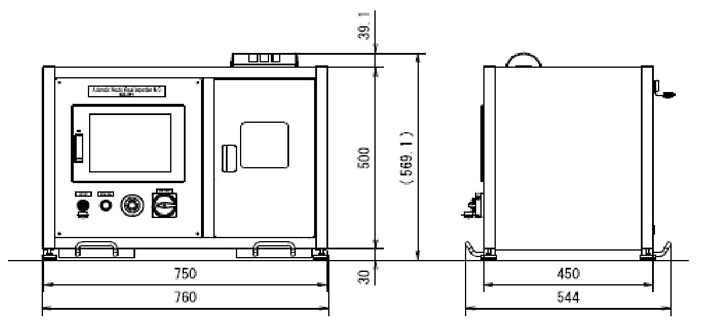

External dimensions (mm) (Body frame size)	W x D x H	750 x 450 x 500
Weight	Equipment weight	(65kg for TANI-01-CB)
Power supply	Voltage	100 to 240 VAC
	Power consumption	80W or less
	Plug	IEC60320 C14 inlet
Processing Capacity		3sec-8sec / 1 nozzle
Nozzle holder	3 types	For 12 (outside diameter Φ92)
		For 24 (outside diameter Φ124)
		For 36 (outside diameter Φ130)
Standard equipments		Signal light_3 lights (red, orange, green)
		Touch panel (10 inch, 1024x768 dots, 16 million colors)
		FTP communication port
Options		2D code reader
		PANA-CIM compatible software
		Database software system
		Image processing software
		Nozzle holder

Specifications and design are subject to change without notice, to improve performance and funtionality.
